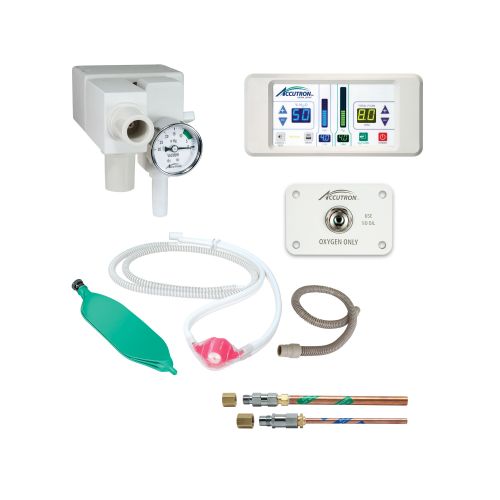

56800-CHAIR Accutron™ Digital Ultra™ Flushmount Package H CHAIR — Remote Flow System for RFS Chairmount Kits

The Digital Ultra™ Flushmount is the right choice for clinicians who prefer to work in a digital environment but want critical parameters displayed both numerically and as electronic flow tubes. The ease of color-coded, fingertip controls is an additional feature of the flowmeter. Its sealed flush surface makes it easy to disinfect or barrier-protect. The unit's design complements aseptic, contemporary operatory environments.

• Automatic compensation to easily adjust total flow or gas ratio
  while the other stays constant.
• Both digital and electronic flowtube displays for ease of use.
• Maximum nitrous oxide ratio at 70% for patient safety.
• Audible and visual alarms to notify of low oxygen.
• Oxygen fail-safe and flush for additional safety.
• Emergency oxygen resuscitation connector.
• Sealed flush surface makes it easy to disinfect or barrier-protect.
• Multiple mounting options available.

All Accutron flowmeters carry a 2-year warranty – the longest flowmeter warranty in the dental industry.

Dimensions (W x H x D)
Flushmount Control Module: 9 1/4" x 4" x 1 1/2"
Remote Main Module: 8" x 4" x 7 1/2"
Mounted Dimensions (W x H x D): 9 1/2" x 4 1/4" x 1/4"
Weight Flushmount Control Module: 1.3 lbs (0.6 kg)
Weight Remote Main Module: 6.1 lbs (2.8 kg)
Mixed Gas Outlet Diameter: 7/8" Nominal (22 mm)
Oxygen Inlet: Male DISS (CGA 1240)
Nitrous Oxide Inlet: Male DISS (CGA 1040)
Nitrous Oxide Mixed Ratio Range: 0-70%
Oxygen Flow Range: 1.0-9.9 LPM
Nitrous Oxide Flow Range: 0-6.9 LPM
Inlet Pressure (each gas): 50-55 psi
Resuscitator Connector: Quick Connect
(1/4" Imperial) at Remote Outlet
Resuscitator Connector Flow: 100 LPM Oxygen
Power Requirements: 100-240 Volt AC; 50-60 Hz
